Parallel Axis Theorem Explained

Introduction to the Parallel Axis Theorem

The Parallel Axis Theorem, also known as the parallel axis rule or Huygens-Steiner theorem, is a fundamental concept in physics and engineering, particularly in the field of mechanics. It states that the moment of inertia of an object about an axis is equal to the moment of inertia about a parallel axis through the center of mass, plus the product of the mass of the object and the square of the distance between the two axes. This theorem is crucial in calculating the moment of inertia of complex objects and is widely applied in various fields, including rotational kinematics, gyroscopes, and rotating machinery.

Understanding the Moment of Inertia

Before diving into the Parallel Axis Theorem, it’s essential to understand the concept of moment of inertia. The moment of inertia is a measure of an object’s resistance to changes in its rotational motion. It depends on the mass distribution of the object and the distance of the mass elements from the axis of rotation. The moment of inertia is typically denoted by the symbol I and is measured in units of kg·m².

Statement of the Parallel Axis Theorem

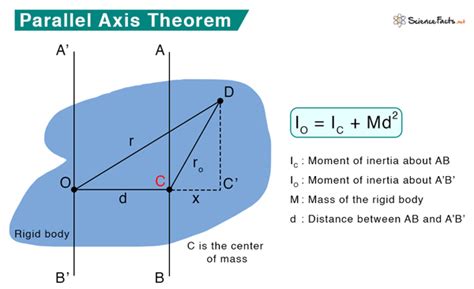

The Parallel Axis Theorem can be mathematically expressed as: I = I_CM + Md² where: - I is the moment of inertia about the desired axis - I_CM is the moment of inertia about a parallel axis through the center of mass - M is the mass of the object - d is the distance between the two parallel axes

Derivation of the Parallel Axis Theorem

To derive the Parallel Axis Theorem, consider an object with mass M and moment of inertia I_CM about an axis through its center of mass. Suppose we want to find the moment of inertia about a parallel axis at a distance d from the center of mass. Using the definition of moment of inertia, we can write: I = ∑(m_i(r_i + d)²) where m_i are the mass elements and r_i are their distances from the center of mass. Expanding the expression, we get: I = ∑(m_ir_i²) + 2∑(m_ir_id) + ∑(m_id²) The first term represents the moment of inertia about the center of mass, I_CM. The second term vanishes because the object’s center of mass is defined such that ∑(m_ir_i) = 0. The third term simplifies to Md², where M is the total mass of the object. Therefore, we arrive at the Parallel Axis Theorem: I = I_CM + Md².

Applications of the Parallel Axis Theorem

The Parallel Axis Theorem has numerous applications in physics, engineering, and other fields. Some examples include: * Rotating machinery: The theorem is used to calculate the moment of inertia of complex rotating systems, such as gears, turbines, and engines. * Gyroscopes: The Parallel Axis Theorem is essential in understanding the behavior of gyroscopes, which rely on the conservation of angular momentum. * Aerospace engineering: The theorem is applied in the design and analysis of aircraft and spacecraft, where the moment of inertia plays a crucial role in determining the stability and maneuverability of the vehicle. * Robotics: The Parallel Axis Theorem is used in robotics to calculate the moment of inertia of robotic arms and other complex mechanisms.

📝 Note: The Parallel Axis Theorem is a powerful tool for calculating the moment of inertia of complex objects, but it requires a thorough understanding of the underlying physics and mathematics.

Example Problems and Solutions

To illustrate the application of the Parallel Axis Theorem, consider the following example: Suppose we have a uniform rod of length L and mass M. We want to find the moment of inertia about an axis perpendicular to the rod and passing through one of its ends. Using the Parallel Axis Theorem, we can write: I = I_CM + Md² where I_CM is the moment of inertia about the center of mass, and d is the distance from the center of mass to the desired axis. For a uniform rod, I_CM = (¹⁄₁₂)ML², and d = L/2. Substituting these values, we get: I = (¹⁄₁₂)ML² + M(L/2)² = (¹⁄₁₂)ML² + (¹⁄₄)ML² = (¹⁄₃)ML² This result can be used to calculate the moment of inertia of more complex objects, such as a rod with a non-uniform mass distribution.

Object	Moment of Inertia
Uniform rod	(1/12)ML²
Solid sphere	(2/5)MR²
Hollow sphere	(2/3)MR²

Common Mistakes and Misconceptions

When applying the Parallel Axis Theorem, it’s essential to avoid common mistakes and misconceptions, such as: * Forgetting to include the distance term: The theorem requires the inclusion of the distance term, Md², which can significantly affect the result. * Incorrectly calculating the moment of inertia about the center of mass: The moment of inertia about the center of mass, I_CM, must be calculated correctly using the appropriate formula or technique. * Ignoring the orientation of the object: The Parallel Axis Theorem assumes that the object is oriented such that the axis of rotation is parallel to the axis through the center of mass.

In conclusion, the Parallel Axis Theorem is a fundamental concept in physics and engineering that allows us to calculate the moment of inertia of complex objects. By understanding the theorem and its applications, we can better analyze and design rotating systems, from simple mechanisms to complex machinery. The theorem’s significance extends beyond the realm of physics, influencing various fields and industries that rely on rotational motion.
